WPF - Custom Progress Bar in WPF

In this article, I am going to talk about customizing a ProgressBar control in pure XAML and tracking its actions in the code-behind.

Let see How to create a Custom ProgressBar.

Step 1
Create a WPF Application.

Step 2
First we need to place a regular ProgressBar control on your window.it is look like this



<Grid>

        <ProgressBar x:Name="PBar" Margin="48,125,45,144"/>

 </Grid>

Step 3
Then we need to build a custom ControlTemplate that will be assigned to the existing
ProgresBar control.Create a Style in Window.Resource element,it is look like this


<Window.Resources>

        <Style x:Key="ProgressBarStyle" TargetType="ProgressBar">

            <Setter Property="Template">

                <Setter.Value>
                    <ControlTemplate TargetType="ProgressBar">
                        <Border BorderBrush="#BBC6C4" BorderThickness="1" CornerRadius="5" Padding="1">
                            <Grid x:Name="PART_Track" >
                                <Rectangle x:Name="PART_Indicator" HorizontalAlignment="Left" RadiusX="5" RadiusY="5">
                                    <Rectangle.Fill>
                                        <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                                            <GradientStop Color="#FF1D5666" Offset="1"/>
                                            <GradientStop Color="#FF09B6FF"/>
                                        </LinearGradientBrush>
                                    </Rectangle.Fill>
                                </Rectangle>
                            </Grid>
                        </Border>
                    </ControlTemplate>
                </Setter.Value>

            </Setter>

        </Style>

    </Window.Resources>

Step 4
Now define the style resources in Progress bar control,it is look like this

<ProgressBar x:Name="PBar" Margin="48,125,45,144" Style="{StaticResource ProgressBarStyle}"/>

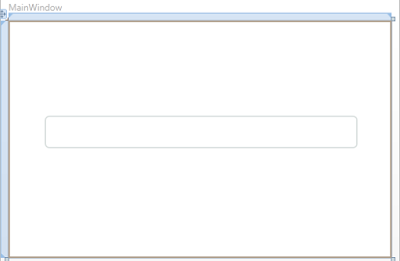

Click on Image for Better View

Step 5
In Code Behind,Import the following Namespace,it is look like this

using System.ComponentModel;
using System.Threading;

Step 6
Create a object of BackgroundWorker Class in MainWindow Class,it is look like this

#region Declaration

        // Create a Object of BackgroundWorker Class
        private BackgroundWorker WorkerThread = new BackgroundWorker();

        #endregion

BackgroundWorker Class
The BackgroundWorker class allows you to run an operation on a separate, dedicated thread. Time-consuming operations like downloads and database transactions can cause
your user interface (UI) to seem as though it has stopped responding while they are running. When you want a responsive UI and you are faced with long delays associated with such operations, the BackgroundWorker class provides a convenient solution.To execute a time-consuming operation in the background, create a BackgroundWorker and listen for events that report the progress of your operation and signal when your operation is finished.

Step 7
Initialize Background Worker,it is look like this
 /// <summary>
        /// Initialize Background Worker
        /// </summary>
        private void InitializeBackgroundWorker()
        {
            try
            {
                WorkerThread.WorkerReportsProgress = true;
                WorkerThread.DoWork += new DoWorkEventHandler(WorkerThread_DoWork);
                WorkerThread.ProgressChanged += new ProgressChangedEventHandler(WorkerThread_ProgressChanged);
                WorkerThread.RunWorkerCompleted += new RunWorkerCompletedEventHandler(WorkerThread_RunWorkerCompleted);

                WorkerThread.RunWorkerAsync();
            }
            catch (Exception ex)
            {
                throw new Exception(ex.Message);
            }
        }

To set up for a background operation, add an event handler for the DoWork event. Call your time-consuming operation in this event handler. To start the operation, call RunWorkerAsync. To receive notifications of progress updates, handle the ProgressChanged event. To receive a notification when the operation is completed, handle the RunWorkerCompleted event.

 void WorkerThread_RunWorkerCompleted(object sender, RunWorkerCompletedEventArgs e)
        {
            try
            {
                PBar.Value = PBar.Maximum;
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        void WorkerThread_ProgressChanged(object sender, ProgressChangedEventArgs e)
        {
            try
            {
                PBar.Value = e.ProgressPercentage;

            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        void WorkerThread_DoWork(object sender, DoWorkEventArgs e)
        {
            try
            {

                for (int i = 0; i < 100; i++)
                {
                    Thread.Sleep(30);


                    WorkerThread.ReportProgress(i);
                }
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }


Step 8
Call InitializeBackgroundWorker method in MainWindow Constructor,it is look like this

 public MainWindow()
        {
            InitializeComponent();

            InitializeBackgroundWorker();
        }


Run the project.
Output
















Full Code

1. XAML
<Window x:Class="WpfCustomProgressBar.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        Title="MainWindow" Height="350" Width="525">

    <Window.Resources>

        <Style x:Key="ProgressBarStyle" TargetType="ProgressBar">

            <Setter Property="Template">

                <Setter.Value>
                    <ControlTemplate TargetType="ProgressBar">
                        <Border BorderBrush="#BBC6C4" BorderThickness="1" CornerRadius="5" Padding="1">
                            <Grid x:Name="PART_Track" >
                                <Rectangle x:Name="PART_Indicator" HorizontalAlignment="Left" RadiusX="5" RadiusY="5">
                                    <Rectangle.Fill>
                                        <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                                            <GradientStop Color="#FF1D5666" Offset="1"/>
                                            <GradientStop Color="#FF09B6FF"/>
                                        </LinearGradientBrush>
                                    </Rectangle.Fill>
                                </Rectangle>
                            </Grid>
                        </Border>
                    </ControlTemplate>
                </Setter.Value>

            </Setter>

        </Style>

    </Window.Resources>

    <Grid>

        <ProgressBar x:Name="PBar" Margin="48,125,45,144" Style="{StaticResource ProgressBarStyle}"/>

    </Grid>
</Window>

2. Code Behind

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;
using System.ComponentModel;
using System.Threading;

namespace WpfCustomProgressBar
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        #region Declaration

        // Create a Object of BackgroundWorker Class
        private BackgroundWorker WorkerThread = new BackgroundWorker();

        #endregion

        public MainWindow()
        {
            InitializeComponent();

            InitializeBackgroundWorker();
        }

        #region Initialize Background Worker

        /// <summary>
        /// Initialize Background Worker
        /// </summary>
        private void InitializeBackgroundWorker()
        {
            try
            {
                WorkerThread.WorkerReportsProgress = true;
                WorkerThread.DoWork += new DoWorkEventHandler(WorkerThread_DoWork);
                WorkerThread.ProgressChanged += new ProgressChangedEventHandler(WorkerThread_ProgressChanged);
                WorkerThread.RunWorkerCompleted += new RunWorkerCompletedEventHandler(WorkerThread_RunWorkerCompleted);

                WorkerThread.RunWorkerAsync();
            }
            catch (Exception ex)
            {
                throw new Exception(ex.Message);
            }
        }

        void WorkerThread_RunWorkerCompleted(object sender, RunWorkerCompletedEventArgs e)
        {
            try
            {
                PBar.Value = PBar.Maximum;
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        void WorkerThread_ProgressChanged(object sender, ProgressChangedEventArgs e)
        {
            try
            {
                PBar.Value = e.ProgressPercentage;

            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        void WorkerThread_DoWork(object sender, DoWorkEventArgs e)
        {
            try
            {

                for (int i = 0; i < 100; i++)
                {
                    Thread.Sleep(30);


                    WorkerThread.ReportProgress(i);
                }
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        #endregion
    }
}

Download
Download Source Code
