ASP.net - Pie Chart in ASP.net 4

In this article i will show you how to Bind Data in Pie chart Control in ASP.net 4.

Step 1
Download Northwind database from the following link.
http://www.microsoft.com/downloads/details.aspx?FamilyID=06616212-0356-46a0-8da2-eebc53a68034&displaylang=en

Step 2
Attach a Northwind database into MS-SQL server.

Step 3
Create a Web application and give the solution name as SolPieChart_ASP_4.

Step 4
Drag the chart control from the toolbox to the page and Expanding the Chart control smart tag,select the Chart type as Pie.it is look like this

Click on Image for better view.

Click on Image for better view.

Note : ASP.net 3.5 Developers

There is no built in Chart control in ASP.net 3.5

Download Microsoft Chart Control for ASP.NET 3.5 from the following Link
http://www.microsoft.com/downloads/details.aspx?FamilyID=130f7986-bf49-4fe5-9ca8-910ae6ea442c&DisplayLang=en

Once you have installed the chart control on your machine, you are ready to use the Chart control in your application.

Chart Control DLL Path
C:\Program Files\Microsoft Chart Controls\Assemblies

Add the following chart related .NET assemblies in your website bin directory so simply copy these two assemblies from the above location to your project bin directory.

System.Web.DataVisualization.dll
System.Web.DataVisualization.Design.dll

Click on Image for better view.

If you want to use Microsoft Chart control by simply dragging and dropping on the web page, I will recommend you to add Chart control to the toolbox. For doing this, Right Click in toolbox click Choose Items option and browse and select the System.Web.DataVisualization.dll.

Click on Image for better view.

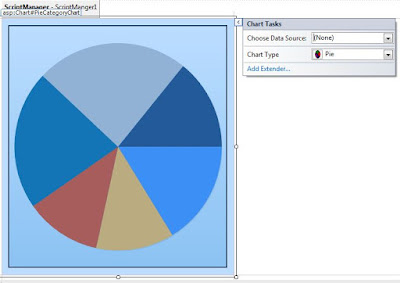

Drag the chart control from the toolbox to the page.

Step 5

Create a Stored Procedure that we fetch count the number of products in each category table in the database so we can bind these data into Pie Chart Control,it is look like this

CREATE PROCEDURE SpProductCount
AS

SELECT Categories.CategoryName,COUNT(*) as 'ProductCount'
	FROM Products
		INNER JOIN
			Categories
				ON
					Products.CategoryID=Categories.CategoryID

					GROUP BY Categories.CategoryName
					ORDER BY Categories.CategoryName ASC
GO

Step 6
Finally we need to configure some of the properties of the Chart control.it is look like this


<asp:Chart ID="PieCategoryChart" runat="server"  Height="471px" Width="931px">

                     <Titles>
                          <asp:Title Name="Title1" Text="Pie Chart in ASP.net 4"
                             Alignment="TopCenter" Font="Verdana, 12pt, style=Bold">
                          </asp:Title>
                    </Titles>

                    <series>
                        <asp:Series ChartType="Pie" Name="PieSeries"
                        XValueMember="CategoryName" YValueMembers="ProductCount"
                        ChartArea="ChartArea1" Legend="Legend1" ShadowOffset="2"
                        ToolTip="CategoryName :#VALX \nProductCount : #VALY">
                        </asp:Series>
                    </series>

                    <chartareas>
                         <asp:ChartArea Name="ChartArea1" BackGradientStyle="TopBottom" Area3DStyle-Enable3D="true"
                            BackSecondaryColor="#B6D6EC" BorderDashStyle="Solid" BorderWidth="2">
                            <AxisX>
                                <MajorGrid Enabled="False" />
                            </AxisX>
                        </asp:ChartArea>
                    </chartareas>

                    <Legends>
                        <asp:Legend Name="Legend1" Title="Category" LegendStyle="Table" TableStyle="Tall"  BackGradientStyle="TopBottom"
                            BackSecondaryColor="#B6D6EC" BorderDashStyle="Solid" BorderWidth="2" >
                        </asp:Legend>
                    </Legends>

                </asp:Chart>

Full .ASPX Code

<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>

<%@ Register assembly="System.Web.DataVisualization, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" namespace="System.Web.UI.DataVisualization.Charting" tagprefix="asp" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title></title>
</head>
<body>
    <form id="form1" runat="server">
    <div>

        <asp:ScriptManager ID="ScriptManger1" runat="server">
        </asp:ScriptManager>

        <asp:UpdatePanel ID="UpdatePanel1" runat="server">
            <ContentTemplate>



                <asp:Chart ID="PieCategoryChart" runat="server"  Height="471px" Width="931px">

                     <Titles>
                          <asp:Title Name="Title1" Text="Pie Chart in ASP.net 4"
                             Alignment="TopCenter" Font="Verdana, 12pt, style=Bold">
                          </asp:Title>
                    </Titles>

                    <series>
                        <asp:Series ChartType="Pie" Name="PieSeries"
                        XValueMember="CategoryName" YValueMembers="ProductCount"
                        ChartArea="ChartArea1" Legend="Legend1" ShadowOffset="2"
                        ToolTip="CategoryName :#VALX \nProductCount : #VALY">
                        </asp:Series>
                    </series>

                    <chartareas>
                         <asp:ChartArea Name="ChartArea1" BackGradientStyle="TopBottom" Area3DStyle-Enable3D="true"
                            BackSecondaryColor="#B6D6EC" BorderDashStyle="Solid" BorderWidth="2">
                            <AxisX>
                                <MajorGrid Enabled="False" />
                            </AxisX>
                        </asp:ChartArea>
                    </chartareas>

                    <Legends>
                        <asp:Legend Name="Legend1" Title="Category" LegendStyle="Table" TableStyle="Tall"  BackGradientStyle="TopBottom"
                            BackSecondaryColor="#B6D6EC" BorderDashStyle="Solid" BorderWidth="2" >
                        </asp:Legend>
                    </Legends>

                </asp:Chart>



            </ContentTemplate>
        </asp:UpdatePanel>


    </div>
    </form>
</body>
</html>

Step 7
Now in Code behind write a two methods for retrieving count the number of product and bind a result set into chart control,it is look like this

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data.SqlClient;
using System.Data;

public partial class _Default : System.Web.UI.Page
{
    protected void Page_Load(object sender, EventArgs e)
    {
        if (IsPostBack == false)
        {
            try
            {
                BindChart();
            }
            catch (Exception)
            { }
        }
    }

    #region Methods

    ///
    /// Get Customers Data from the Nortwind Database
    ///
    /// DataTable
    private DataTable  GetProductCountData()
    {
        try
        {
            SqlConnection SqlCon = new SqlConnection(@"Data Source=SHREE\SHREE;Initial Catalog=Northwind;Integrated Security=True");
            SqlCon.Open();

            SqlCommand SqlComm = new SqlCommand();
            SqlComm.Connection = SqlCon;
            SqlComm.CommandType = CommandType.StoredProcedure;
            SqlComm.CommandText = "SpProductCount";

            DataTable Table = new DataTable();

            SqlDataAdapter SqlDa = new SqlDataAdapter(SqlComm);
            SqlDa.Fill(Table);

            return Table;
        }
        catch (Exception ex)
        {
            throw new Exception(ex.Message);
        }
    }

    ///
    ///  Bind Customers Data into Pie Chart
    ///
    private void BindChart()
    {
        try
        {
            DataTable Table = GetProductCountData();

            if (Table != null)
            {
                if (Table.Rows.Count > 0)
                {
                    PieCategoryChart.DataSource = Table;
                    PieCategoryChart.DataBind();
                }
            }
        }
        catch (Exception ex)
        {
            throw new Exception(ex.Message);
        }
    }

    #endregion
}

Run the Project

Output

4.0

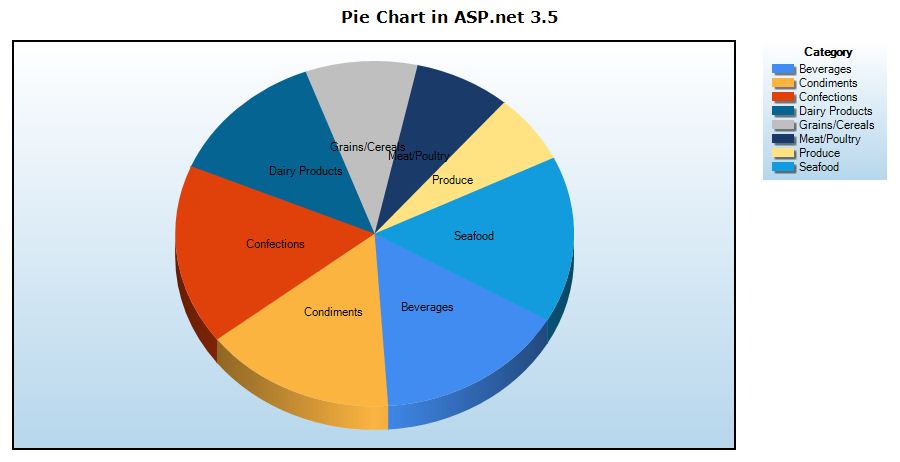

Click on Image for better view.

3.5

Click on Image for better view.

Download
Pie Chart ASP.net 4.0
Pie Chart ASP.net 3.5

Wednesday, August 24, 2011

WPF - Pie Chart in WPF

In this article i will show you how to Bind Data in Pie chart Control in WPF.

Step 1
First we need to download WPF Toolkit from the following link.
http://wpf.codeplex.com/

Install WPF toolkit on your System.

Step 2
Download Northwind database from the following link.
http://www.microsoft.com/downloads/details.aspx?FamilyID=06616212-0356-46a0-8da2-eebc53a68034&displaylang=en

Step 3
Attach a Northwind database into MS-SQL server.

Step 4
Create a WPF Application and give the solution name as WpfPieChart.

Step 5
Adding WPF Toolkit Reference.
To add a reference, right click the References folder of your project in Solution Explorer and select Add Reference.On this dialog, select Browse option and browse the System.Windows.Controls.DataVisualization.Toolkit.dll assembly from the folder where you installed the WPF Toolkit.

DataVisualization.Toolkit.dll Path
C:\Program Files\WPF Toolkit\v3.5.50211.1\System.Windows.Controls.DataVisualization.Toolkit.dll

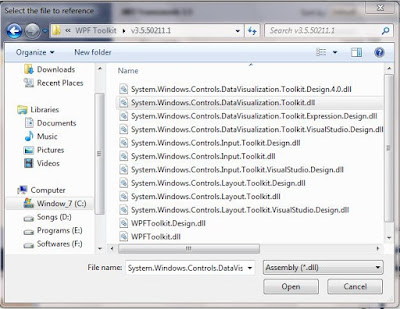

Click on Image for Better View

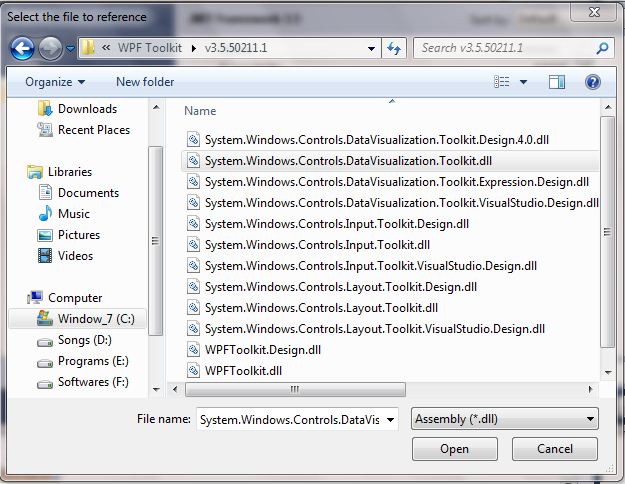

Click on Image for Better View

Step 6
Create a Stored Procedure that we fetch count the number of countries in customer table so we can bind these data into Pie Chart Control,it is look like this

CREATE PROCEDURE SpCountCountry
AS
	SELECT Customers.Country,COUNT(Customers.Country) as 'Count' FROM Customers
GROUP BY Customers.Country
ORDER BY Customers.Country ASC

GO

Step 7
Create a Customers static class in the solution for retrieving number of countries from customer table,it is look like this

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Data;
using System.Data.SqlClient;

namespace WpfPieChart
{
    public static class Customers
    {
        ///
        ///  Count Country in Customers Table
        ///
        ///
        public static DataTable GetCustomersData()
        {
            try
            {
                SqlConnection SqlCon = new SqlConnection(@"Data Source=SHREE\SHREE;Initial Catalog=Northwind;Integrated Security=True");
                SqlCon.Open();

                SqlCommand SqlComm = new SqlCommand();
                SqlComm.Connection = SqlCon;
                SqlComm.CommandType = CommandType.StoredProcedure;
                SqlComm.CommandText = "SpCountCountry";

                DataTable Table = new DataTable();

                SqlDataAdapter SqlDa = new SqlDataAdapter(SqlComm);
                SqlDa.Fill(Table);

                return Table;
            }
            catch (Exception ex)
            {
                throw new Exception(ex.Message);
            }
        }

    }
}

Step 7
Now Add DataVisualization assemble reference to the page on window tag, it is look like this

xmlns:ChartTools="clr-namespace:System.Windows.Controls.DataVisualization.Charting;assembly=System.Windows.Controls.DataVisualization.Toolkit"

Finally it's look like this

<Window
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:ChartTools="clr-namespace:System.Windows.Controls.DataVisualization.Charting;assembly=System.Windows.Controls.DataVisualization.Toolkit"
        x:Class="WpfPieChart.MainWindow"
        Title="Pie Chart" Height="350" Width="525">

</Window>

Step 8
Now Creates a Pie Chart and Bind customers data in Pie Chart,it's look like this

<Grid>
		<ChartTools:Chart x:Name="PieCustomerChart" Title="Customers Countrywide">

			<ChartTools:PieSeries ItemsSource="{Binding}"
				IndependentValueBinding="{Binding Country}"
				DependentValueBinding="{Binding Count}" Title="{Binding Country}">
				</ChartTools:PieSeries>

		</ChartTools:Chart>
	</Grid>

The dependent value is the value displayed on the chart. The independent value is the label shown in the legend.

Step 9
Now Bind the data in Pie Chart Control in Code Behind,it is look like this

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;

namespace WpfPieChart
{
    ///
    /// Interaction logic for MainWindow.xaml
    ///
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();

            BindPieChart();  // Call BindChart Function in Constructors
        }

        #region Methods
        ///
        ///  Bind the Pie Chart
        ///
        private void BindPieChart()
        {
            try
            {
                PieCustomerChart.DataContext = Customers.GetCustomersData();
            }
            catch (Exception ex)
            {
                throw new Exception(ex.Message);
            }
        }

        #endregion
    }
}

Run the Project.

Output

Click on Image for Better View

Full XAML Code

<Window
		xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
		xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
		xmlns:ChartTools="clr-namespace:System.Windows.Controls.DataVisualization.Charting;assembly=System.Windows.Controls.DataVisualization.Toolkit"
		x:Class="WpfPieChart.MainWindow"
		Title="Pie Chart" Height="350" Width="525">

	<Grid>
		<ChartTools:Chart x:Name="PieCustomerChart" Title="Customers Countrywide">

			<ChartTools:PieSeries ItemsSource="{Binding}"
				IndependentValueBinding="{Binding Country}"
				DependentValueBinding="{Binding Count}" Title="{Binding Country}">
				</ChartTools:PieSeries>

		</ChartTools:Chart>
	</Grid>
</Window>

Download
Download Source Code
